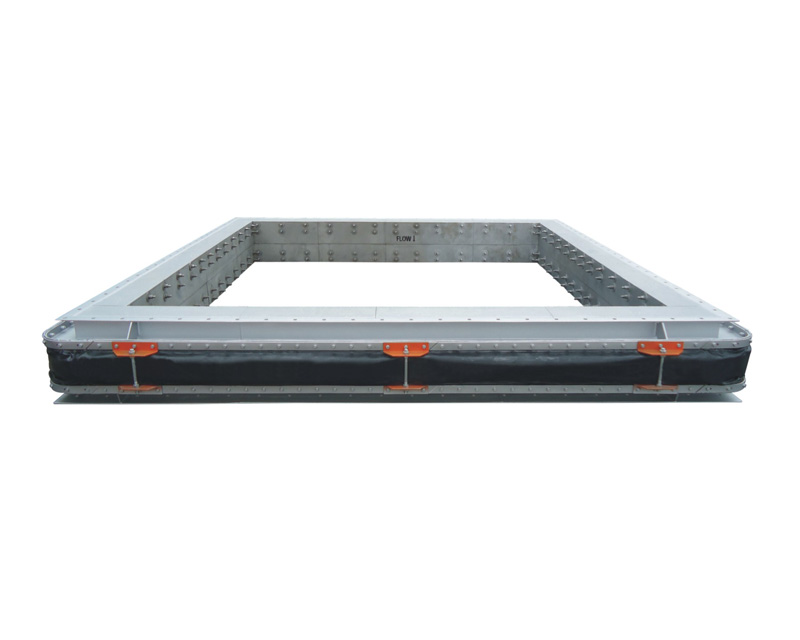

Product Name: Non-metallic Expansion Joint

Performance characteristics:Non-metallic compensator, also known as flexible expansion joint (fabric compensator), is composed of non-metallic complex and metal structural components. Non-metallic complex is mainly made from high-performance fluorosilicone rubber cloth, polytetrafluoroethylene film, alkali-free glass fiber cloth and aluminum silicate (cotton) cloth, etc., through the technology optimal combination of hot pressing, gluing and sewing, etc. This product has the abilities of universal compensation and absorbing thermal expansion thrust, causes no reverse thrust (no rigidity or rebound), is simply structured and has the strengths of vibration isolation, noise reduction, high (low) temperature resistance, corrosion resistance, light weight and easy installation and maintenance, etc.

Detail

9e3fb340-7d1e-45b6-bf0f-9c281712e60e.jpg700ac8f4-4149-4bc5-a41b-0f7355bd3c92.jpgefb0df91-f591-4f0f-ac65-b5ad174a3666.jpg

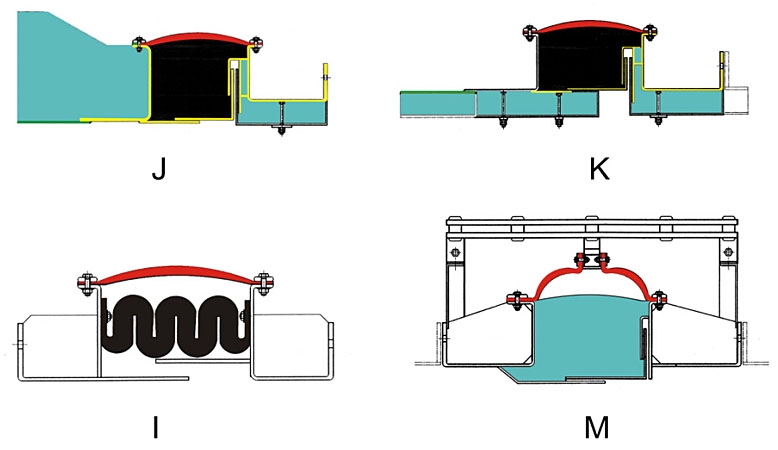

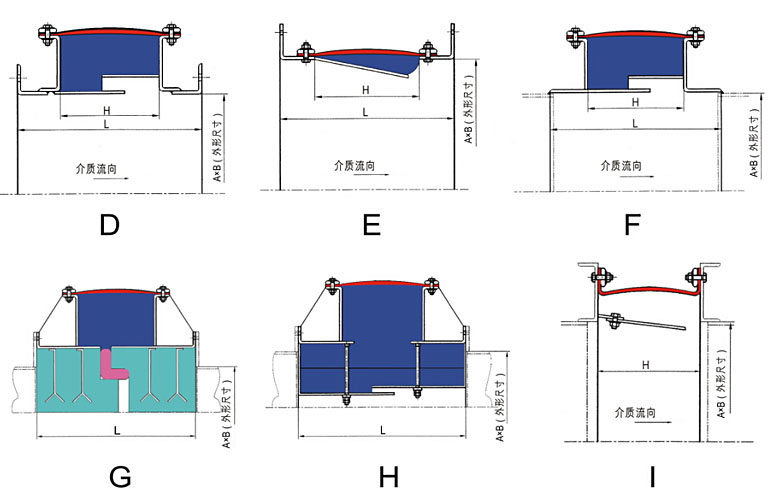

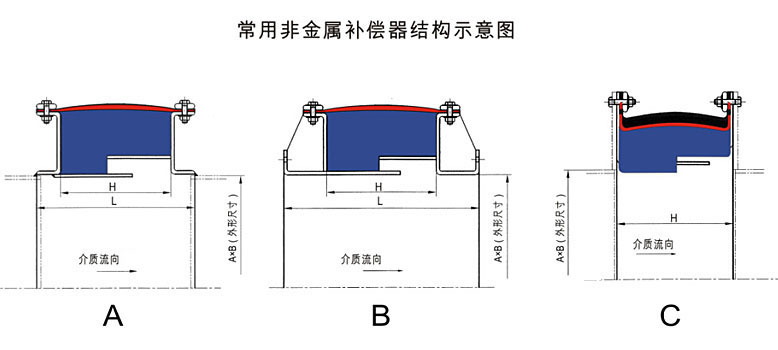

MAIN TYPES
